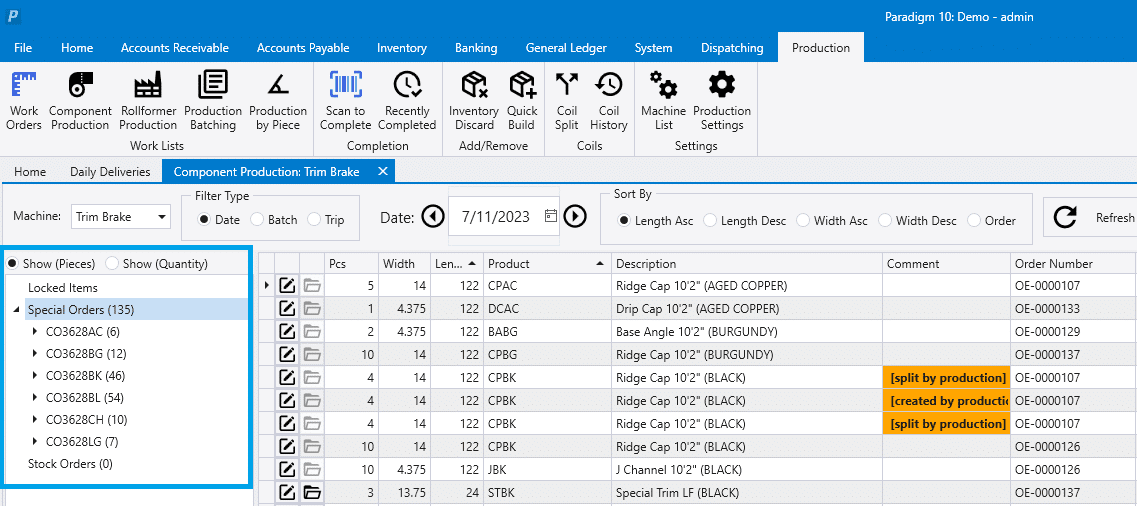

Component Tree

The component tree is used in the component and rollformer production screens. Clicking on one of the components will show the builds that need to be produced from that coil across all orders.

There are two different options for displaying the amount that needs to be produced beside each component.

• Show (Pieces) – The amount of pieces that need produced.
• Show (Quantity) – The total quantity (pieces * length for linear items) from the order detail. For items produced by the linear foot, this will show the total footage.

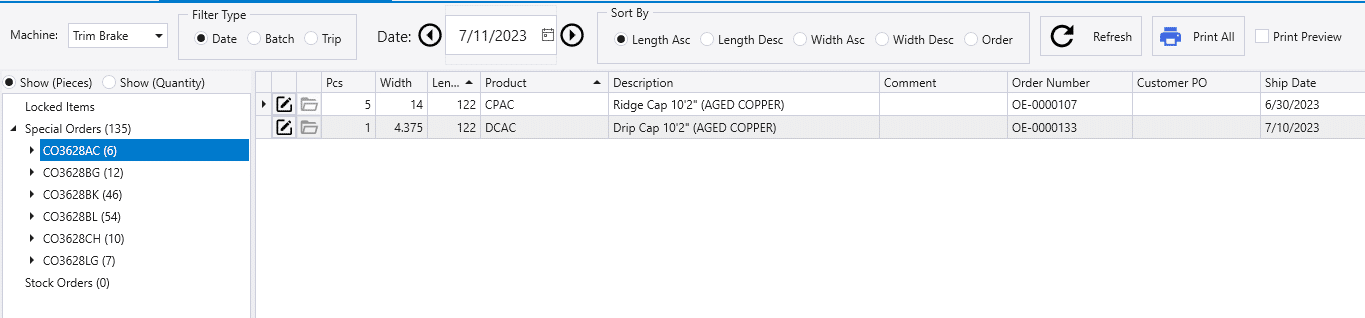

The arrow beside component can be clicked to show the product quantity by width, and then by length.

Stock Orders

Clicking on the “Stock Orders” section will show only the Manufacture Orders.

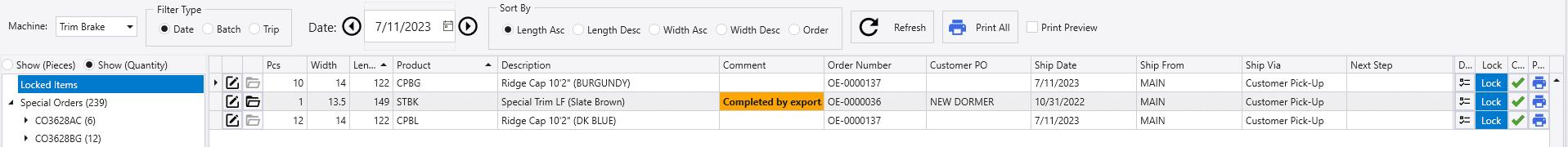

Locked Items

Clicking on the “Locked Items” section will show only the locked builds.
