Production Screens

Production has two tabs that can be used for producing any product (Work Orders and Component Production), and a third that is specialized for rollforming (Rollformer Production).

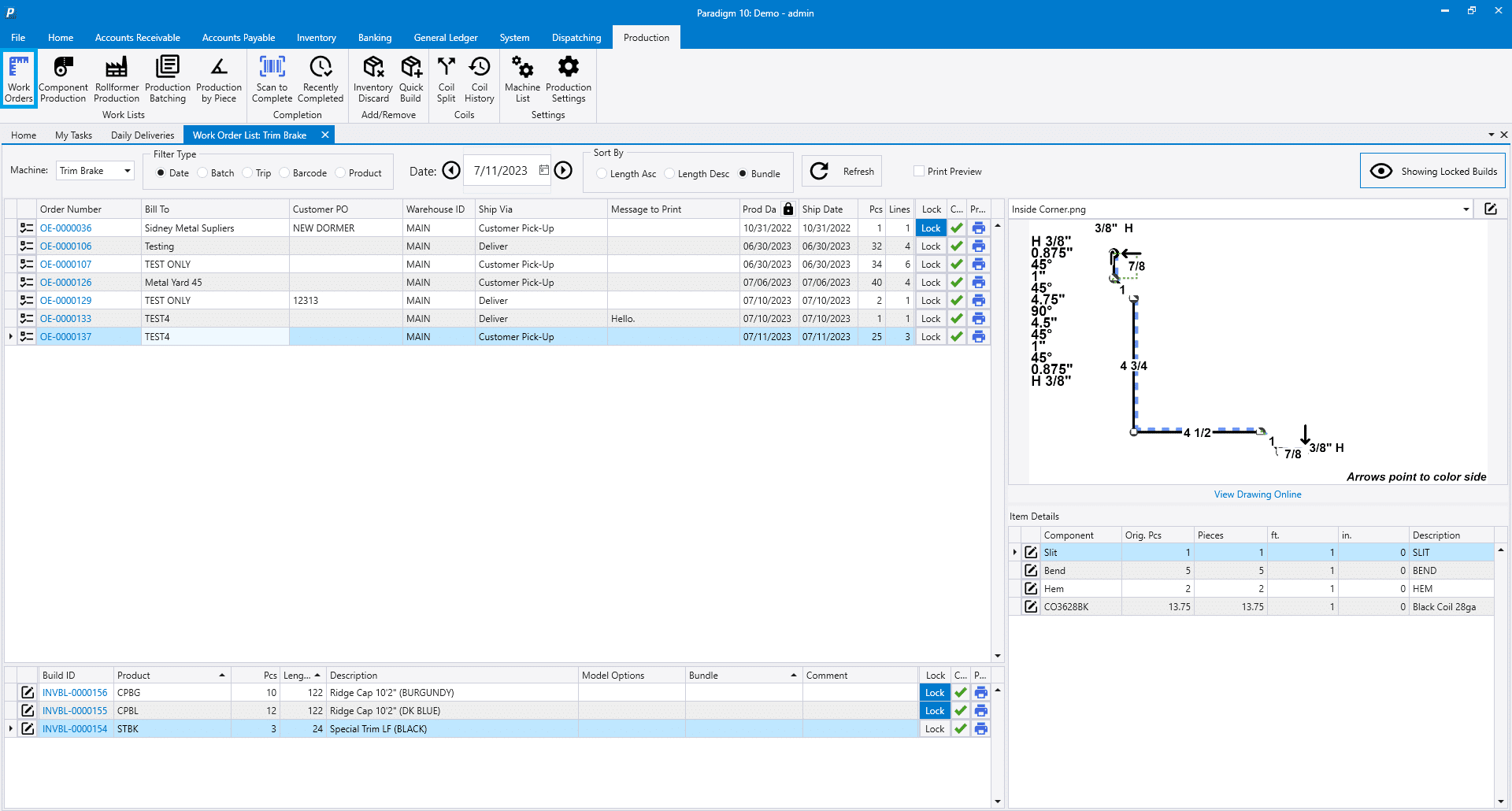

Work Orders

The Work Order list shows each open order at the top, and they can be filtered by any of the options at the top. Clicking on an order shows all of the builds for that order being produced at the selected machine. Clicking on a build at the bottom displays any attachments and the component list for it. This screen works well for producing everything needed for a single order (at a given machine) all one time.

Order Type Filter

An optional “Order Type Filter” can be enabled in Production settings for the Work Order list, to allow the user to filter between manufacture orders and sales orders.

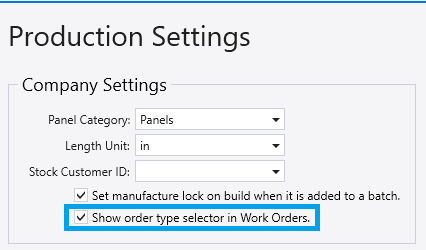

To enable this, go to Production > Production Settings > Enable “Show order type selector in Work Orders”

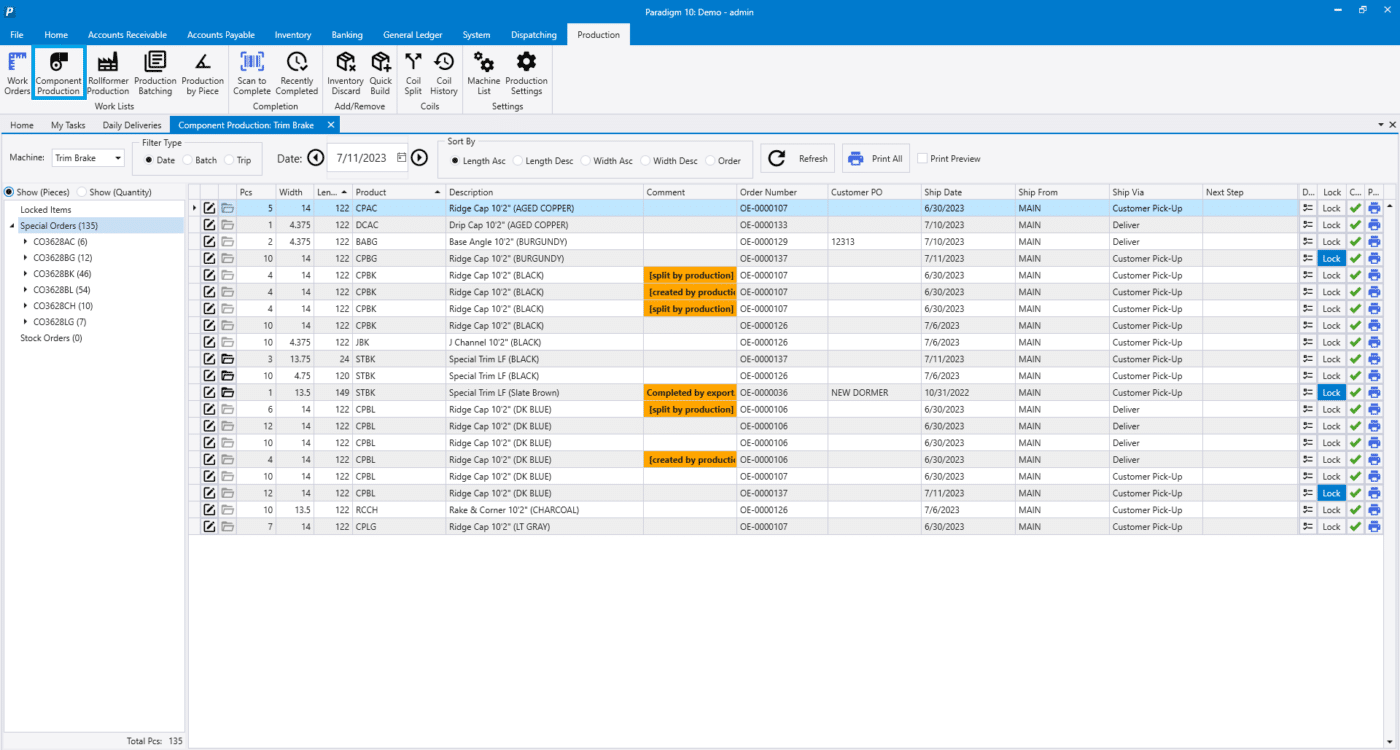

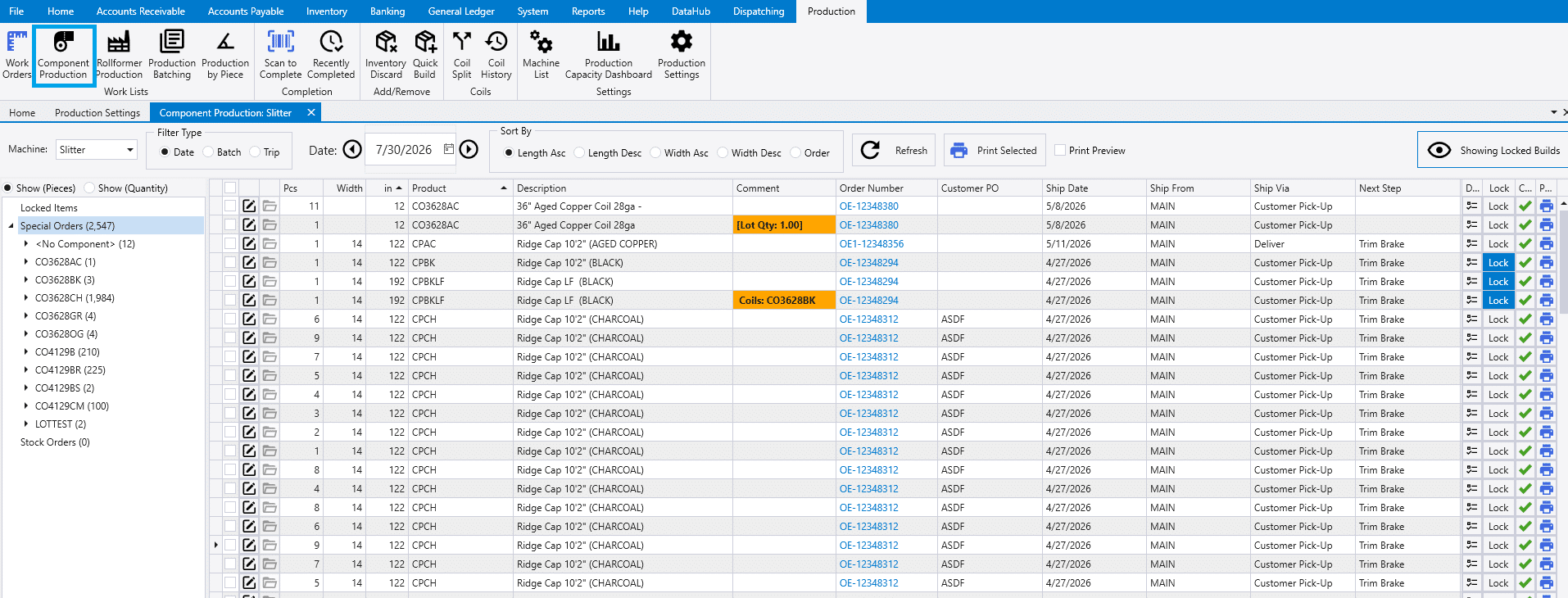

Component Production

Component Production shows a list of the components being used by unfinished builds at the selected machine on the left, and selecting a component filters the list to just the products being made out of that component, which is most commonly used to make all of trim needed from a particular coil color before changing coils.

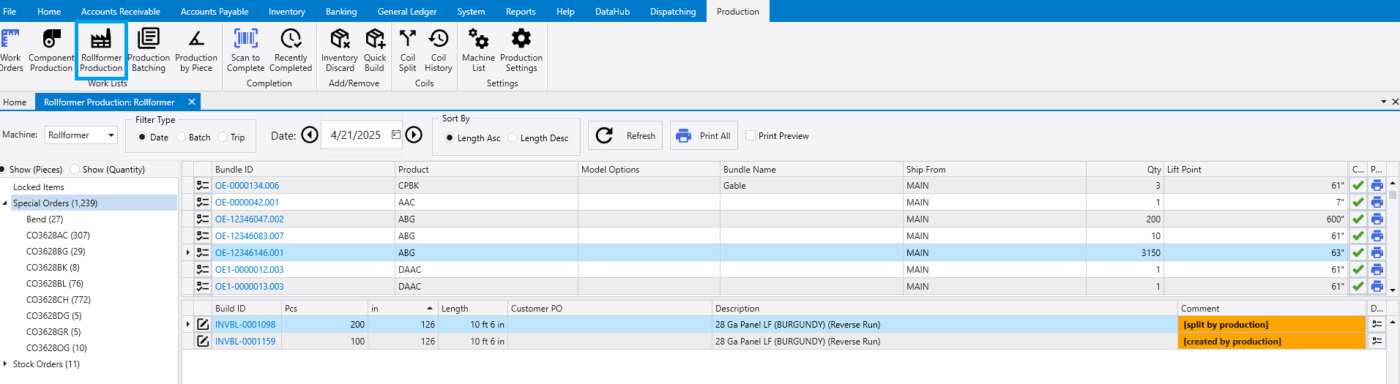

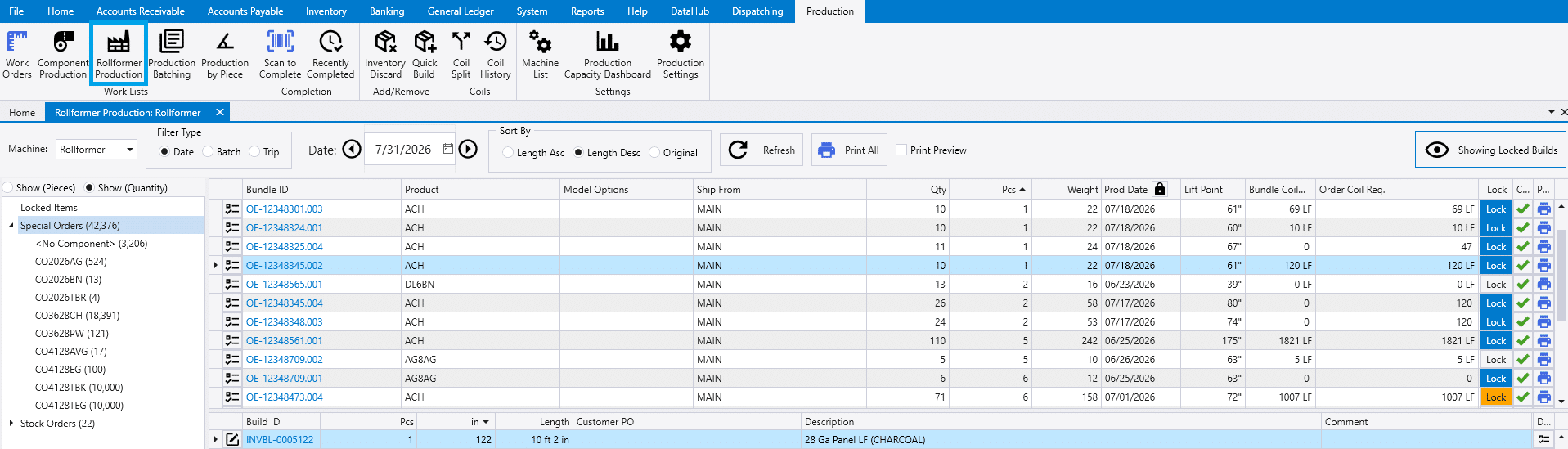

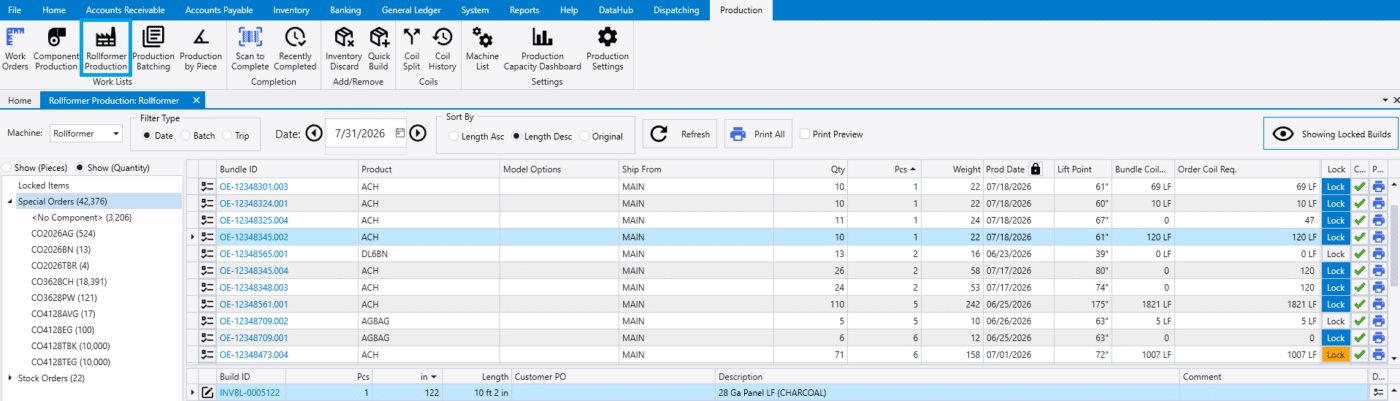

Rollformer Production

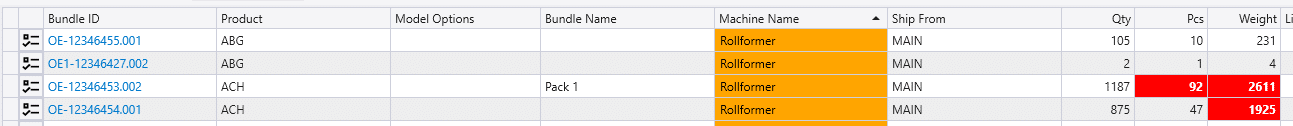

Rollformer Production is similar to Component Production, but with additional group levels for orders and bundles to mirror the way the panels will be packed. Locking, printing, exporting, and completing will effect all of the lines in the bundle/order at once, rather than needing to handle each line individually. The lift point column will indicate the center of balance for the entire pack of panels.

Assign To Different Machine

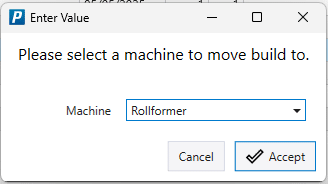

Right clicking a build in any of the production screens will show an option called “Assign to different machine”. This will allow the user to select another machine to send the build to.
